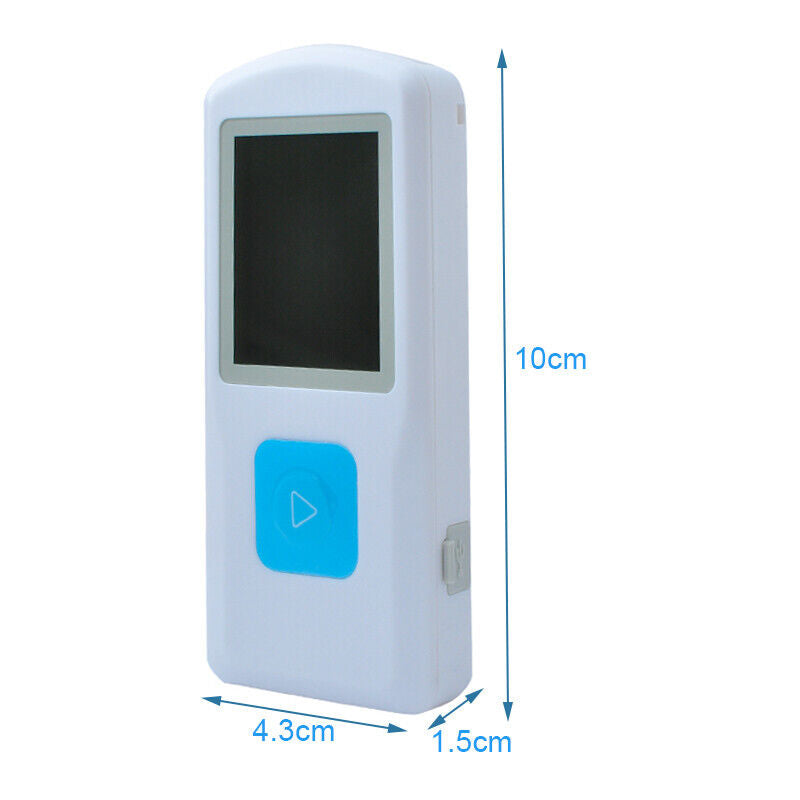

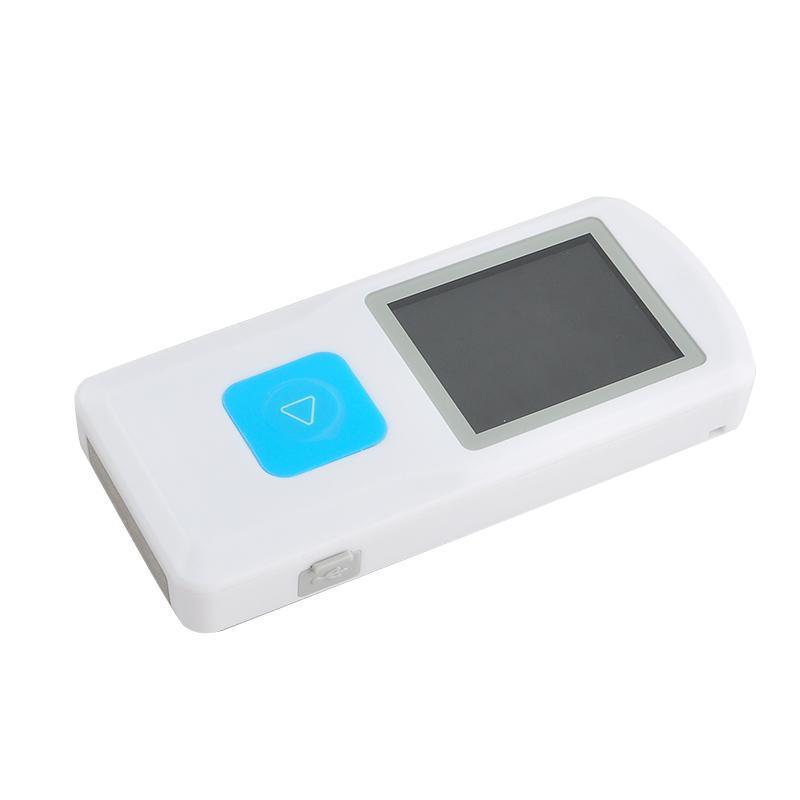

PM10 Handheld ECG

PM10 Handheld ECG

Regular price £48.00 GBP
Regular price Sale price £48.00 GBP
Sale Sold out
Tax included.

PM10 Handheld ECG:

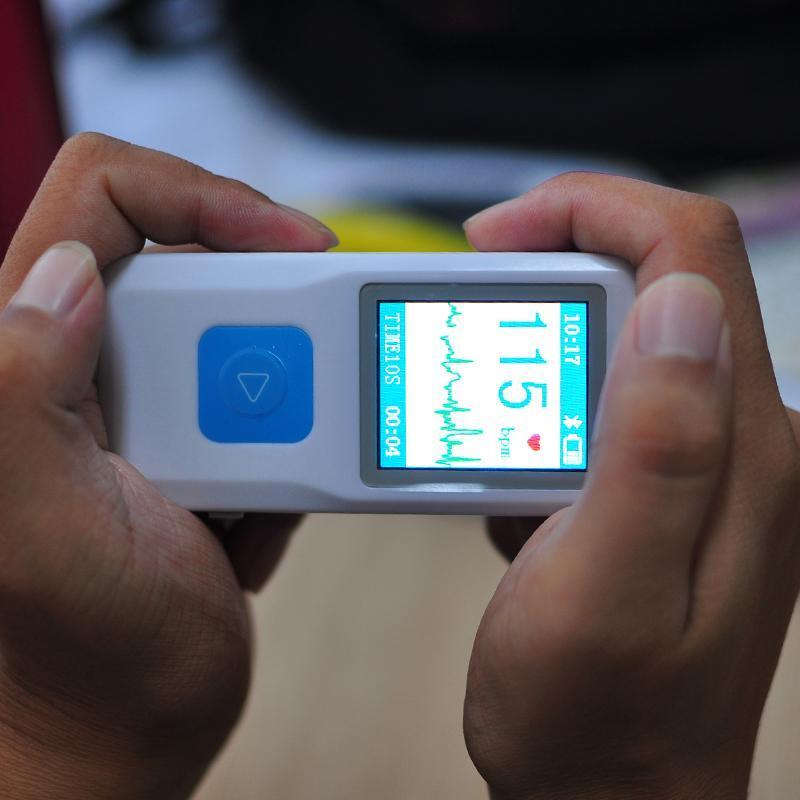

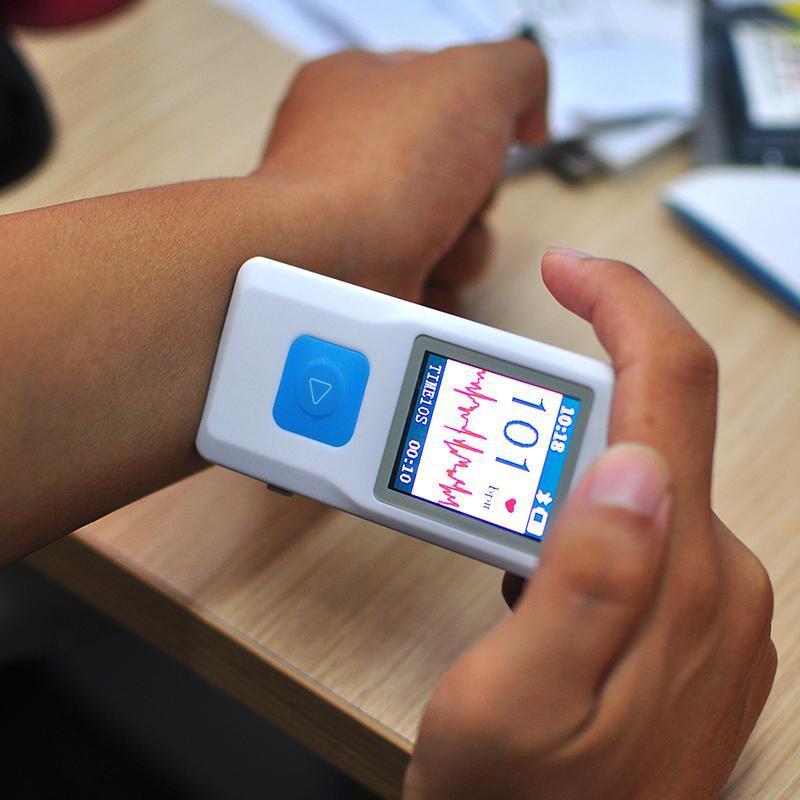

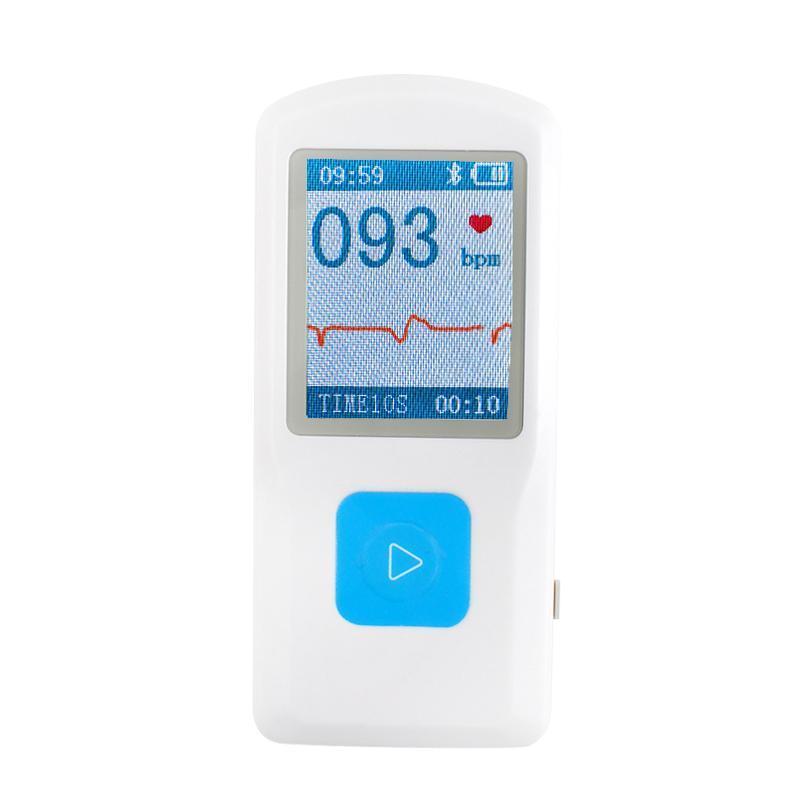

The PM10 Handheld ECG is a compact, and highly portable device designed for rapid and accurate cardiac monitoring. This user-friendly monitor features a clear, high-resolution display and uncomplicated controls, making it suitable for both medical professionals and personal use. Delivering real-time ECG waveforms and reliable heart rate measurements, the PM10 provides essential insights into cardiac health.



Heart rate:

The PM10 will alert you to major heart rate abnormalities, reporting "bradycardia," "normal rhythm" or "tachycardia" after monitoring for 10 seconds. Certain conditions are associated with abnormal heart rates - such as when you are in atrial fibrillation (AF), or feeling palpitations. Having the PM10 to hand (it's small enough to carry in your pocket) means that you can capture these often transient episodes, and save them onto the monitor. You can then export them using the provided software, and send the recordings to your doctor.



Heart rhythm:

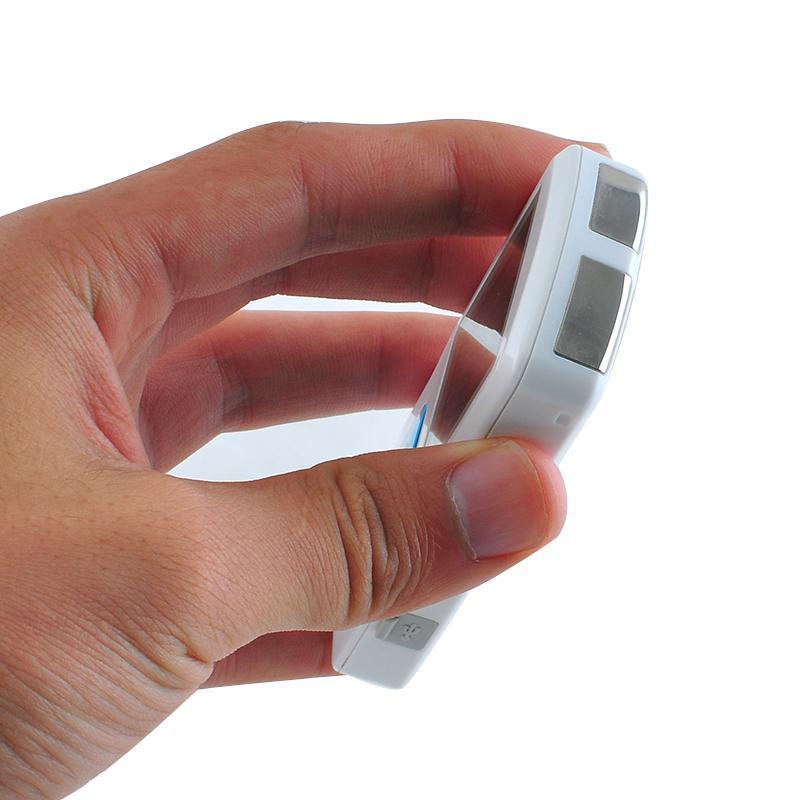

The PM10 is no substitute for 12-lead ECG, but it can give you a basic rhythm strip, from which certain anomalies can be observed. These include ventricular ectopics, heart block, abnormal intervals, atrial fibrillation, and atrial flutter. The fact that the monitor can also be used against the chest can make it more sensitive to picking up atrial rhythms.

Transient rhythm changes can be observed in several conditions, such as when experiencing chest pain (of ischaemic origin), palpitations (of unknown origin or during pregnancy), or dyspnoea.



Why buy from us?

We are not your standard medical equipment company. Any questions are answered directly by a technician who works within a cardiology department in the NHS. Whilst we cannot offer medical advice to you outside of the hospital setting, we have a genuine understanding of ECG and any associated tests you may have had (such as echocardiography), and are happy to guide you with terminology and how to use the machine.

  • 12-month manufacturer warranty.
View full details

Product Features:

  • Can store up to 500 measurements per charge.

  • Bluetooth data transmission for permanent history storage on other devices.

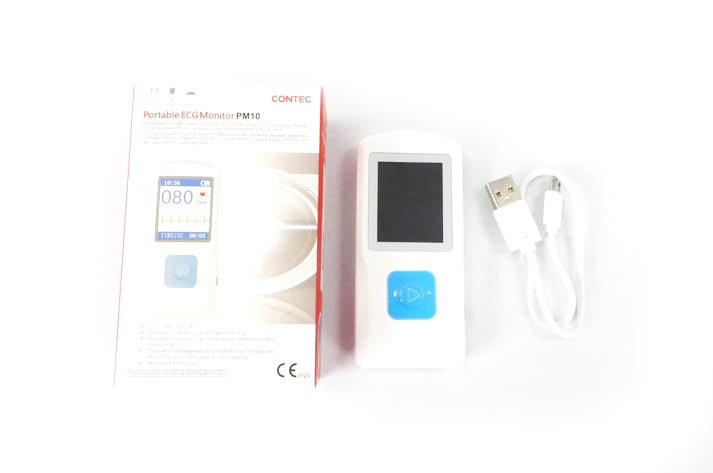

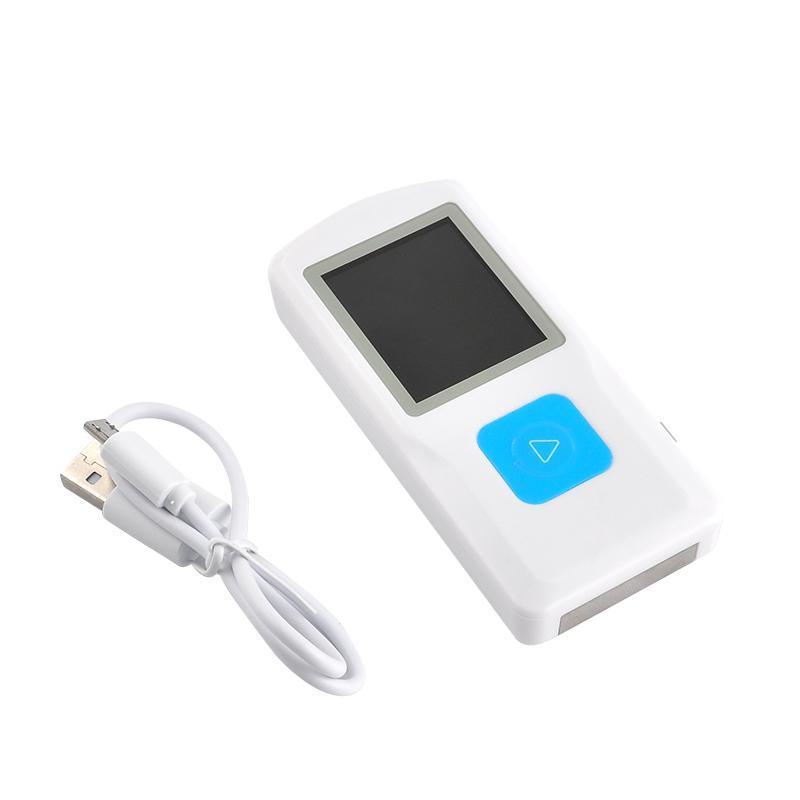

Package Includes:

  • PM10 Handheld ECG Device.
  • USB cable.
  • Manual.

Technical specifications:

Operation Environment:

Temperature: +5°C ~ +40°C.

Relative Humidity: 25% ~ 80%.

Atmospheric Pressure: 70kPa ~ 106 kPa.

Power Supply: Built-in rechargeable lithium battery, voltage: 3.7V.

Transportation and Storage Environment:

Temperature: -40°C ~ +55°C.

Relative Humidity: ≤95%.

Atmospheric Pressure: 50kPa ~ 106kPa.

Basic Parameters:

  • Leader: Standard 3 Leads. I II III.
  • Calibration Voltage: 1mV±5%.
  • Standard Sensitivity: 10mm/mV±5%.
  • Amplitude Frequency Characteristic: Standard: 10Hz; 1Hz ~ 20Hz (+0.4dB, -3dB).
