CMS50D+ OLED Fingertip Pulse Oximeter with PC software

CMS50D+ OLED Fingertip Pulse Oximeter with PC software

£67.20 GBP
£67.20 GBP
Sale Sold out
Tax included.

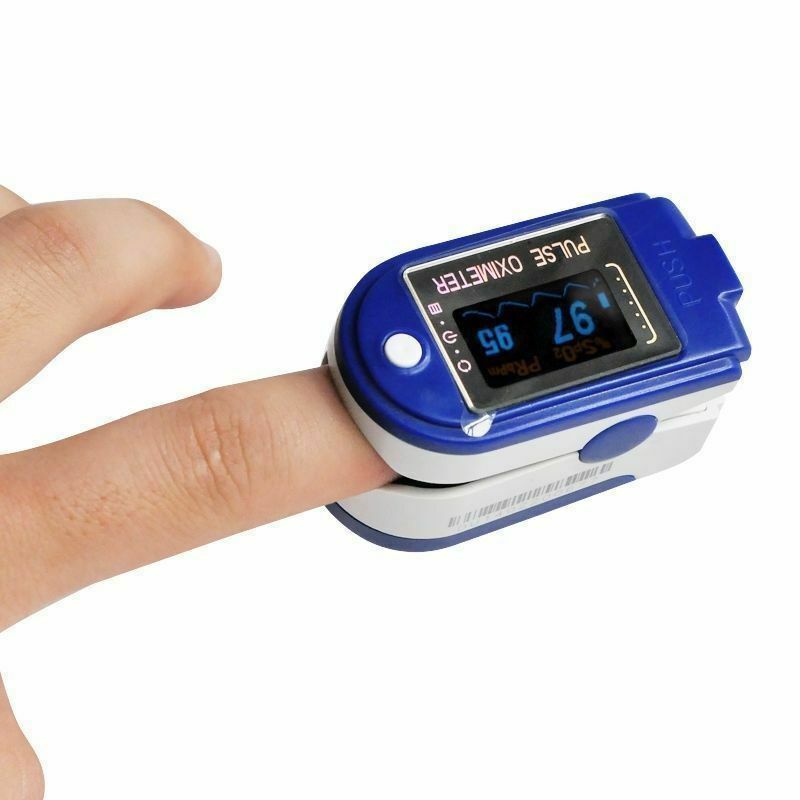

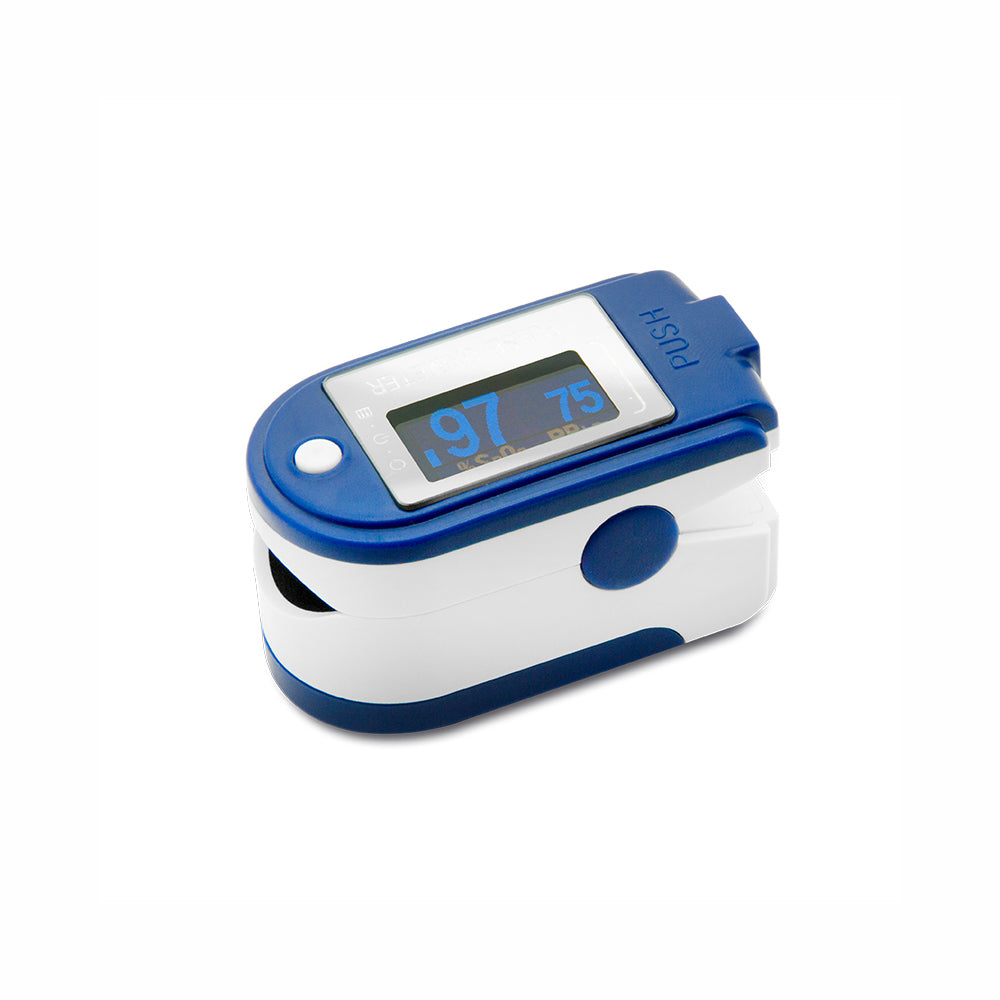

CMS50D+ OLED Fingertip Pulse Oximeter:

The CMS50D+ has a colour, multi-direction LCD screen for displaying oxygen saturation (SpO2) and pulse rate, which can be displayed in numerical, waveform, or graph formats. This advanced pulse oximeter also allows for the setting of alarms, can emit a pulse rate sound, and data can be stored and uploaded to your computer. Reliable and user-friendly, this device is designed to monitor blood oxygen saturation and pulse rate with precision, making it ideal for both healthcare professionals and personal use.



The CMS50D+ is compact, offering quick and accurate readings, making it an essential tool for managing respiratory and cardiovascular health. This product also includes an alarm function, to alert users to abnormal SpO2 or pulse rate levels, enhancing safety and peace of mind.



Dimensions: 58.5(L) × 31(W) × 32 (H) mm.
Weight: About 50g (with batteries inserted).



CE and FDA certified.

View full details

Product Features:

  • Display Mode: 0.96″ Dual colour OLED display
  • Screen Resolution: 128*64
  • SpO2 Measuring Range: 0%～100% (the resolution is 1%)
  • Accuracy: 70%～100%: ±2%
  • PR Measuring Range 30bpm～250bpm, (the resolution is 1bpm)
  • Accuracy: ±2bpm or ±2% (whichever is greater)
  • Measurement Performance in Weak Filling Conditions: SpO2 and pulse rate can be shown correctly when pulse-filling ratio is 0.4%. SpO2 error is ±4%, pulse rate error is ±2 bpm or ±2% (whichever is greatest).
  • Power Consumption: less than 80mA
  • Voltage: DC 2.6V～3.6V
  • Power Supply: 1.5V (AAA size) alkaline batteries × 2 (not supplied)
  • Battery working time: approximately 32 hours.

Package Includes:

  • CMS50D+ OLED Fingertip Pulse Oximeter with PC software.

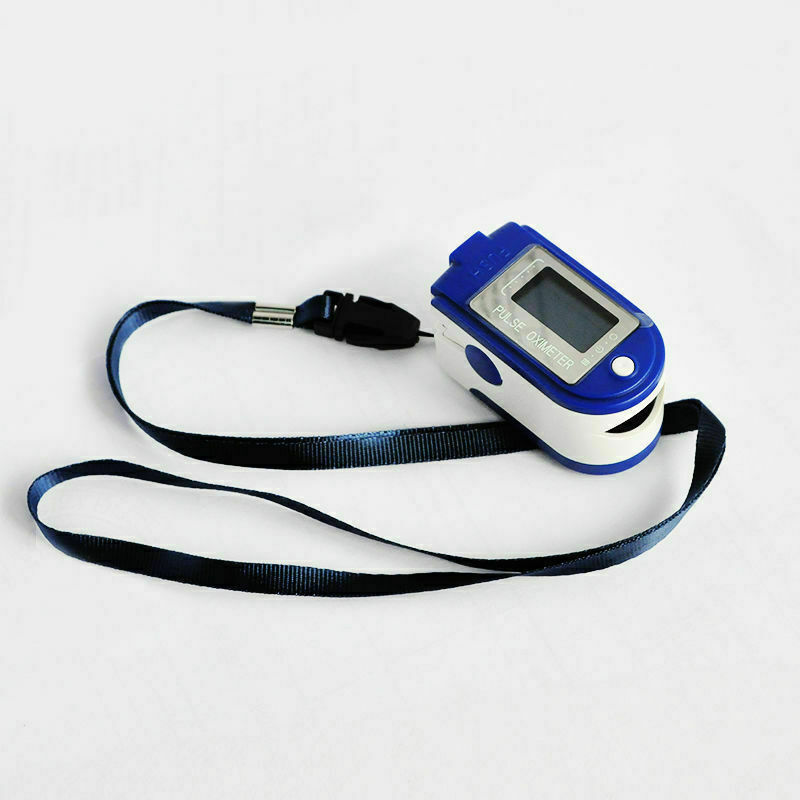

  • Lanyard.
  • Charging Cable.
  • User Manual.

Technical specifications:

Main Performance:

  • SpO2 value display.
  • Pulse rate value display, Bar graph display.
  • Pulse waveform display.
  • Low-voltage indication: Low-voltage indicator appears before working abnormally which is due to low-voltage.
  • Display direction can be changed automatically, easy to view.
  • The product will enter standby mode when no signal is in the product within 5 seconds.
  • A pulse rate sound indication.
  • With alarm function.
  • With the SpO2 value and pulse rate value of storage, the stored data can be uploaded to computers.
  • Data can be transmitted to computers.

Measurement of SpO2:

Measuring range: 0% ~ 100%.

Accuracy: When the SpO2 measuring range is 70% ~ 100%, the permission of absolute error is ±2%; below 70% unspecified.

Measurement of Pulse Rate:

Measuring range: 30bpm ~ 250bpm.

Accuracy: ±2bpm (beats per minute) or ±2% (select larger).

Resolution:

SpO2: 1%, Pulse rate 1bpm. (Beats per minute)

Measurement Performance in Weak Filling Condition:

SpO2 and pulse rate can be shown correctly when the pulse-filling ratio is 0.4%. SpO2 error is ±4%, and pulse rate error is ±2bpm (beats per minute) or ±2% (select larger).

Resistance to Surrounding Light:

The deviation between the value measured in the condition of man-made light or indoor natural light and that of a darkroom is less than ±1%.

Power Supply Requirement:

2.6V DC ~ 3.6V DC.

Optical Sensor:

Red light (wavelength is 660nm, 6.65mW).

Infrared (wavelength is 880nm, 6.75mW).

Adjustable Alarm Range:

SpO2: 0% ~ 100%.

Pulse Rate: 0bpm ~ 254bpm. (Beats per minute)

Environment Requirements:

Storage Environment: Temperature: -40°C ~ +60°C. / Relative Humidity: ≤95%. / Atmospheric Pressure: 500hPa ~ 1060 hPa.

Operating Environment: Temperature: 10°C ~ 40°C. / Relative Humidity: ≤75%. / Atmospheric Pressure: 700hPa ~ 1060hPa.
